Shandong Tengfei Hoisting Engineering Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | SANY |
| Model Number : | SCC6200TM-7 |
| Price : | Negotiable Price |
| Payment Terms : | L/C,T/T |
| Supply Ability : | Supply According to Customer Needs |
| Delivery Time : | According to Order Confirmation |

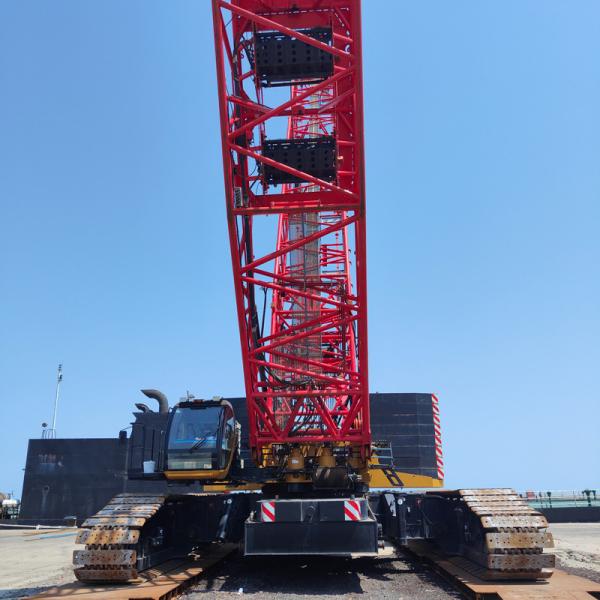

Max lifting moment: 6200TM
Longest main boom: 84m
Longest main boom + jib: 84m+84m
Main Features
Product Specifications
Engine
. Model: Weichai WP13G480E470 (National IV emission standard);
. Rated power: 353kW;
. Rated speed: 2100rpm;
. Maximum output torque: 2100Nm;
. Speed at maximum output torque: 1200~1600rpm.
Control system
. Adopting Sany's self-developed SYIC-1 control system, it has
rapid response, precise operation and reliable quality. The control
system is mainly composed of power supply system, engine system,
main control system, torque limiter system, auxiliary system and
closed-circuit monitoring system;
. The main electrical components adopt international or
industry-renowned brands with reliable quality, and can operate
stably in harsh environments such as high cold, high temperature,
plateau and strong wind and sand. The electrical design fully meets
the CE standard, with multi-level safety limit control and various
safety signal indications.
. The torque limiter display, instrument combination display, and
closed-circuit monitor are in the operator's direct field of
vision; the torque display mainly monitors the torque and other
parameters of the crane; the instrument combination display mainly
displays the operating status of the crane, the control parameters
of each monitoring point, and the alarm; the closed-circuit monitor
realizes real-time monitoring of the winch operation and the
environment at the tail of the platform; there are three operating
handles in the left and right armrest boxes, and the handle control
function is switched by the handle button. The selected function
and the handle opening will be displayed on the display.
Hydraulic system
. The hydraulic system includes: lifting hydraulic system, walking
hydraulic system, slewing hydraulic system, luffing hydraulic
system, servo hydraulic system, anti-tilt hydraulic system, cooling
system, auxiliary hydraulic system, etc. The main hydraulic
components are all imported;
. Features: The lifting, traveling, luffing and slewing hydraulic
systems all adopt closed circuits, which are energy-saving,
high-efficiency, fast operation response, low heat generation and
long life;
. The servo systems all adopt electric proportional control
components to facilitate precise and intelligent control;
. The anti-tilt hydraulic system adopts an externally controlled
external leakage balance valve and is installed on the oil
cylinder, which is safe and reliable;
. The cooling hydraulic system has the characteristics of large
heat dissipation power and good cooling effect.
Cab
. It adopts a fully sealed steel frame structure, with large-scale high-strength tempered glass installed on the front, sides and top, which has good light transmittance. The cab is spacious and bright, with a wider field of vision. The suspension, multi-mode and multi-level adjustable seats with shock absorption and noise reduction provide the operator with the most comfortable driving experience. The air conditioner adjusts the appropriate indoor temperature. The left and right armrest boxes and the auxiliary control box are equipped with joysticks, control buttons, ignition lock and other components. The indoor noise is low (less than 85dB), and the seats, joysticks and control buttons are designed according to ergonomics. They can be adjusted to the most suitable position with the seats, making the operation more comfortable. The cab can be adjusted accordingly according to work needs, and can be tilted upwards by 0~24°, or rotated to the front of the platform, which is convenient for transportation.
|
|
