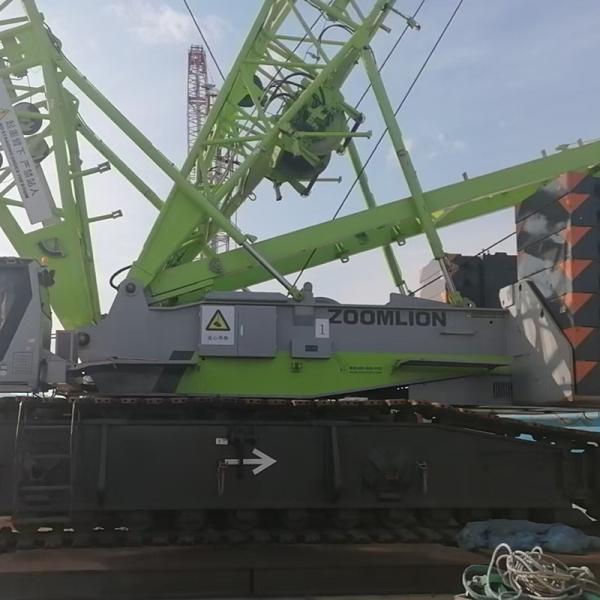

500 Ton Crawler Crane Quality Assurance In Lifting Operation Crawler Mounted Crane 1.2km/H

Product Categories

Shandong Tengfei Hoisting Engineering Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	ZOOMLION
Model Number :	ZCC5800
Price :	Negotiable Price
Payment Terms :	L/C,T/T
Supply Ability :	Supply According to Customer Needs
Delivery Time :	According to Order Confirmation

Add to Cart

Chapter 5 Luffing Jib Working Conditions

Main boom30m Rear weight 160t Vehicle weight 40t 360°Full slewing Main boom elevation angle 85°
Radians(m)	Jib length(m)									Radians(m)
	24	30	36	42	48	54	60	66	72
14	150									14
16	139	134	129							16
18	123	118	114	111						18
20	108	106	102	99.7	96.4					20
22	95.2	94.7	92.7	90.3	87.2	85				22
24	84.7	84.3	83.7	82.4	79.6	77.5	74.9	72.9		24
26	76.1	75.7	75.2	75	73.1	71.2	68.7	66.9	64.6	26
28	68.8	68.6	68.1	67.9	67.1	65.6	63.4	61.7	59.5	28
30		62.5	62	61.9	61.1	60.8	58.7	57.1	55	30
32		57.3	56.9	56.7	56	55.7	54.5	53.1	51.1	32
34		52.6	52.4	52.3	51.5	51.2	50.4	49.5	47.6	34
36			48.4	48.3	47.6	47.3	46.5	46.1	44.4	36
38			44.9	44.9	44.2	43.9	43.1	42.7	41.6	38
40			41.6	41.8	41.1	40.8	40	39.6	38.8	40
44				36.4	35.8	35.6	34.8	34.4	33.6	44
48					31.5	31.3	30.5	30.1	29.3	48
52					27.7	27.7	26.9	26.5	25.8	52
56						24.5	23.8	23.5	22.7	56
60							21.2	20.9	20.1	60
64								18.6	17.8	64
68								16.5	15.8	68
72									14	72

Main boom 36m Rear weight 160t Vehicle weight 40t 360°Full slewing Main boom elevation angle 85°
Radians (m)	Jib length(m)									Radians (m)
	24	30	36	42	48	54	60	66	72
14	150									14
16	134	129								16
18	118	114	110							18
20	106	102	99.1	96.4	93					20
22	95	92.9	89.8	87.4	84.3	82.2				22
24	84.5	84	81.9	79.7	77	75	72.4			24
26	75.9	75.5	74.9	73.3	70.8	68.9	66.5	64.7	62.5	26
28	68.7	68.4	67.8	67.6	65.4	63.7	61.3	59.7	57.6	28
30		62.4	61.8	61.6	60.6	59	56.8	55.3	53.3	30
32		57.1	56.7	56.5	55.8	54.9	52.9	51.4	49.5	32
34		52.5	52.2	52	51.3	51	49.3	47.9	46	34
36			48.2	48.1	47.4	47.1	46.1	44.8	43	36
38			44.7	44.7	44	43.7	42.8	42	40.2	38
40			41.5	41.6	40.9	40.6	39.8	39.4	37.7	40
44				36.3	35.7	35.4	34.6	34.2	33.3	44
48					31.4	31.1	30.3	29.9	29.1	48
52					27.6	27.5	26.8	26.4	25.6	52
56						24.4	23.7	23.4	22.6	56
60							21.1	20.8	20	60
64							18.7	18.5	17.7	64
68								16.4	15.7	68
72									13.9	72

Main boom 42m Rear weight 160t Vehicle weight 40t 360°Full slewing Main boom elevation angle 85°
Radians (m)	Jib length(m)									Radians (m)
	24	30	36	42	48	54	60	66	72
14	147									14
16	129	124								16
18	114	110	106							18
20	102	99.1	95.6	93						20
22	93	89.8	86.8	84.3	81.4	79.4				22
24	84.2	82.1	79.2	77.2	74.5	72.5	69.9			24
26	75.7	75.2	72.8	71	68.5	66.7	64.3	62.5		26
28	68.5	68.1	67.3	65.6	63.3	61.6	59.4	57.8	55.6	28
30		62.1	61.5	60.9	58.7	57.1	55	53.5	51.5	30
32		56.9	56.4	56.2	54.7	53.2	51.2	49.7	47.8	32
34		52.4	51.9	51.8	51	49.7	47.7	46.4	44.5	34
36			48	47.9	47.1	46.6	44.6	43.4	41.6	36
38			44.5	44.5	43.7	43.4	41.9	40.6	38.9	38
40			41.4	41.4	40.7	40.4	39.3	38.1	36.4	40
44				36.1	35.5	35.2	34.3	33.8	32.2	44
48					31.2	30.9	30.1	29.7	28.6	48
52					27.5	27.4	26.6	26.2	25.4	52
56						24.3	23.5	23.2	22.4	56
60							20.9	20.6	19.8	60
64							18.6	18.3	17.5	64
68								16.3	15.6	68
72									13.8	72
76									12.1	76

Main boom 48m Rear weight 160t Vehicle weight40t 360°Full slewing Main boom elevation angle 85°
Radians(m)	Jib length(m)									Radians(m)
	24	30	36	42	48	54	60	66	72
16	123	119								16
18	110	106	102							18
20	99.1	95.4	92.2	89.7						20
22	89.9	86.8	83.8	81.4	78.6					22
24	82.2	79.4	76.6	74.6	71.9	70	67.4			24
26	75.4	73	70.5	68.7	66.1	64.4	62	60.3		26
28	68.2	67.5	65.2	63.5	61.1	59.5	57.3	55.7	53.5	28
30	62	61.8	60.5	59	56.8	55.2	53.1	51.7	49.6	30
32		56.7	56.1	55	52.9	51.5	49.4	48	46	32
34		52.1	51.7	51.4	49.4	48.1	46.1	44.8	42.9	34
36		48.1	47.8	47.6	46.3	45	43.1	41.9	40.1	36
38			44.3	44.2	43.4	42.3	40.5	39.2	37.5	38
40			41.2	41.1	40.4	39.8	38	36.8	35.1	40
44				35.9	35.2	34.9	33.7	32.6	31	44
48					31	30.7	29.9	29.1	27.5	48
52					27.3	27.2	26.3	26	24.5	52
56						24.1	23.3	23	21.9	56
60							20.7	20.4	19.6	60
64							18.4	18.1	17.4	64
68								16.1	15.4	68
72									13.6	72
76									12	76
