650T Crawler Crane Can Well Solve The Safety Challenges Faced In Urban Environments

SCC6500 Crawler Crane Technical Specifications

Detailed Introduction

The under part

Travel drive

The travel system has two speeds; it has strong traction and can achieve 70% load-carrying steering; each travel reducer is driven independently, which can flexibly achieve forward, backward or on-the-spot steering.

Travel brake

The travel brake is a normally closed type placed inside the reducer (i.e. it is in the braking state when the travel handle is not operated). It can automatically compensate and does not require adjustment. When the travel handle is operated, the brake is released and travel is achieved.

Track Shoes

The left and right crawler walking devices have a total of 136 track shoes, each with a width of 1500mm. The tension of the track shoes can be adjusted by hydraulic jacks, and the position of the gaskets can be adjusted to achieve the ideal tension.

Base

High-strength welded frame structure; hydraulic cylinder drives the power pin to connect with the crawler frame, which makes installation and disassembly very convenient and easy.

Traveling speed

The variable speed motor can achieve two speeds, and can achieve infinite speed change in each speed, high speed: 0~1.0km/h, low speed 0~0.55km/h, to ensure the smooth operation of the equipment and realize walking.

Operating equipment

All operating device pipes are made of high-strength steel pipes, plates are made of high-strength steel plates, and luffing supports are also made of high-strength steel pipes; pulley materials: all pulleys on the boom are rolled and welded pulleys, and all pulleys on the hook are rolled and welded pulleys;

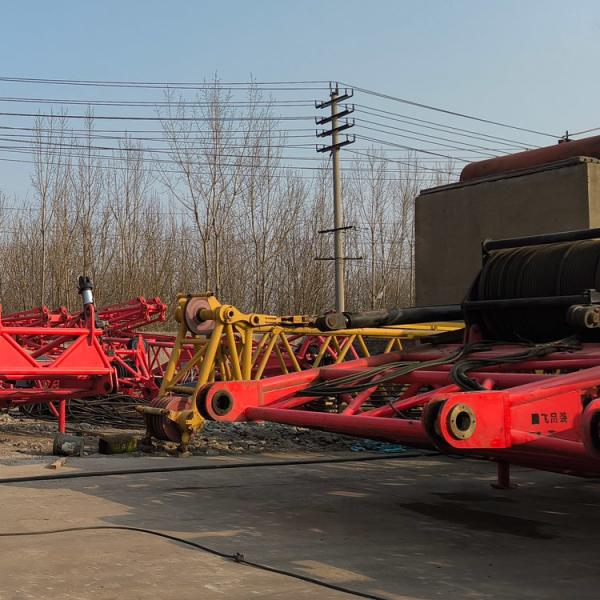

Boom

The boom is a space truss structure with a uniform cross section in the middle and variable cross sections at both ends. The steel pipes are welded, and the top and root of the boom are reinforced with steel plates, which is more conducive to load transmission.

The length of the main boom is between the basic boom (24m) and the maximum length (108m).

Composition:

Lower boom 12m×1, transition boom 10.5m×1, connecting section 1.5m×1, intermediate boom 6m×2, intermediate boom 12m×6.

Shandong Tengfei Hoisting Engineering Co., Ltd. is a Chinese company that sells second-hand crane equipment for self-use, with more than ten years of sales experience. All our crane equipment is from our own projects, the equipment is in good condition, there are no middlemen, and the price is better. We have a full range of second-hand crane models, including brands such as XCMG,SANY, ZOOMLION,and any crane you need can be found here.

The specifications of our crawler cranes are: 55T, 85T, 130T, 150T, 180T, 220T, 260T, 300T, 320T, 350T, 400T, 500T, etc., with a wide range of lifting weights; due to the flexibility and maneuverability of crawler cranes, they can well complete various lifting projects such as construction, mining operations, port and terminal loading and unloading, railway construction, power construction, shipbuilding and marine engineering, heavy equipment handling, etc.
