Crawler crane models: XGC200
Maximum rated lifting capacity: 200t
Maximum rated lifting moment: 1043.8t.m
Typical working condition lifting performance table
Fixed jib condition

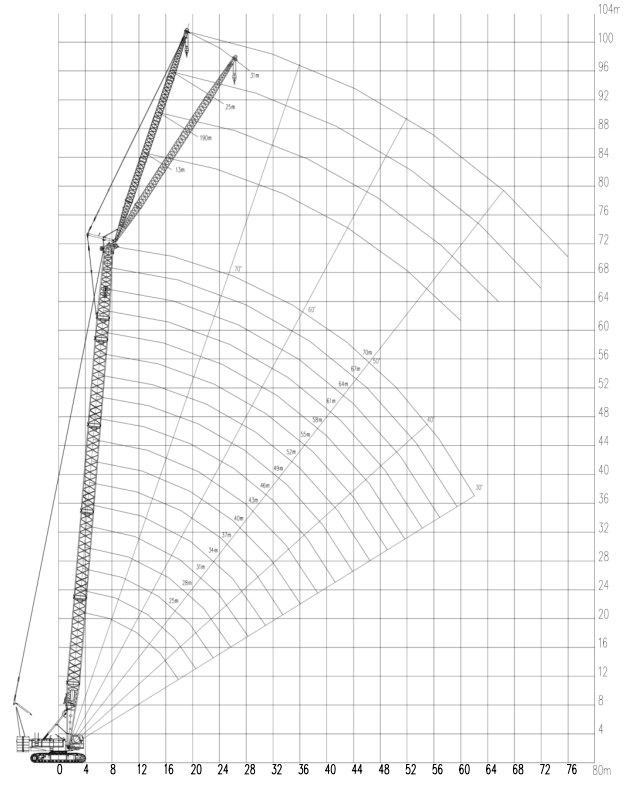

Working range diagram of fixed jib condition
Fixed jib lifting performance table(Mounting 15 degrees, main arm without hook)
Jib angle | 15 degrees | |||||||||
Boom(m) | 25 | 58 | 70 | |||||||
Jib(m) | 13 | 19 | 25 | 31 | 13 | 19 | 25 | 31 | 13 | 19 |
Width(m) | ||||||||||
9 | 33.5 | |||||||||
10 | 32.3 | |||||||||
12 | 30.5 | 22.9 | ||||||||
14 | 28.8 | 21.5 | 17.5 | 27.7 | ||||||
16 | 27.3 | 20.1 | 16.4 | 13.0 | 26.7 | 19.6 | ||||
18 | 26.0 | 19.0 | 15.3 | 12.2 | 25.9 | 18.9 | 15.1 | 15.7 | ||
20 | 23.7 | 18.0 | 14.4 | 10.8 | 25.1 | 18.2 | 14.5 | 10.9 | 15.5 | 14.1 |
22 | 22.7 | 17.1 | 13.7 | 10.3 | 24.2 | 17.5 | 13.9 | 10.6 | 15.1 | 13.8 |
24 | 21.9 | 16.2 | 12.9 | 9.7 | 21.4 | 16.9 | 13.3 | 10.2 | 14.7 | 13.5 |
26 | 21.2 | 15.4 | 12.2 | 9.3 | 19 | 16.3 | 12.9 | 9.1 | 14.3 | 13.1 |
28 | 20.4 | 14.7 | 10.5 | 8.7 | 17 | 15.7 | 12.3 | 8.8 | 13.9 | 12.7 |
30 | 19.0 | 14.0 | 10.0 | 8.2 | 15.2 | 15.2 | 11.9 | 8.6 | 13.5 | 12.5 |
32 | 17.3 | 13.5 | 9.5 | 7.8 | 13.6 | 14 | 11.6 | 8.3 | 12.3 | 12.1 |
34 | 15.5 | 12.9 | 9.1 | 7.3 | 12.3 | 12.5 | 11.1 | 8.1 | 11.1 | 11.2 |
36 | 12.5 | 8.7 | 6.9 | 11.2 | 11.4 | 10.8 | 7.7 | 10 | 10.3 | |
38 | 12.1 | 8.3 | 6.5 | 10 | 10.4 | 10.4 | 7.4 | 9 | 9.2 | |
40 | 11.5 | 7.9 | 6.2 | 9.1 | 9.4 | 9.6 | 7.1 | 8.1 | 8.3 | |
42 | 7.6 | 6.0 | 8.2 | 8.5 | 8.7 | 6.9 | 7.3 | 7.6 | ||
44 | 7.3 | 5.6 | 7.5 | 7.8 | 8 | 6.6 | 6.6 | 6.9 | ||
46 | 5.5 | 6.9 | 7.1 | 7.3 | 6.3 | 5.9 | 6.3 | |||
48 | 5.3 | 6.2 | 6.5 | 6.7 | 6.2 | 5.4 | 5.7 | |||
50 | 5.1 | 5.7 | 6 | 6.1 | 6 | 5 | 5.2 | |||
52 | 5.2 | 5.5 | 5.6 | 5.7 | 4.6 | 4.8 | ||||
54 | 4.8 | 5 | 5.1 | 5.3 | 4.1 | 4.4 | ||||
56 | 4.3 | 4.6 | 4.8 | 4.9 | 3.7 | 3.9 | ||||
58 | 4 | 4.3 | 4.4 | 4.6 | 3.4 | 3.6 | ||||
60 | 3.7 | 3.9 | 4 | 4.1 | 2.9 | 3.2 | ||||
62 | 3.5 | 3.7 | 3.8 | 2.6 | 2.9 | |||||
64 | 3.1 | 3.4 | 3.5 | 2.3 | 2.6 | |||||
66 | 2.8 | 3.1 | 3.2 | 2.1 | 2.3 | |||||
68 | 2.8 | 2.9 | 2.1 | |||||||
70 | 2.5 | 2.7 | ||||||||
72 | 2.3 | 2.4 | ||||||||
74 | 2.3 | |||||||||
Weight (m ) | 65+21 | |||||||||
Fixed jib lifting performance table (installed at 30 degrees, main boom without hook)
Jib angle | 30 degrees | |||||||||
Boom(m) | 25 | 58 | 70 | |||||||
Jib(m) | 13 | 19 | 25 | 31 | 13 | 19 | 25 | 31 | 13 | 19 |
Width(m) | ||||||||||
14 | 24.2 | |||||||||
16 | 23.2 | |||||||||
18 | 22.5 | 16.7 | 20.9 | |||||||
20 | 21.8 | 16 | 20.5 | 14.4 | ||||||
22 | 20.7 | 15.2 | 11 | 20.1 | 14.6 | 14.2 | ||||
24 | 19.9 | 14.5 | 10.5 | 19.7 | 14.2 | 14 | 12.3 | |||
26 | 18.7 | 13.4 | 10.1 | 8.1 | 19.3 | 13.9 | 10.6 | 13.7 | 12.2 | |
28 | 17.9 | 12.6 | 9.6 | 7.7 | 17.9 | 13.5 | 9.4 | 13.4 | 12.1 | |
30 | 17.1 | 12.1 | 9.2 | 7.4 | 16 | 13.1 | 9.2 | 7.1 | 13.1 | 11.8 |
32 | 16.7 | 11.8 | 8.8 | 7 | 14.5 | 12.7 | 8.9 | 7 | 12.9 | 11.6 |
34 | 15.8 | 11.7 | 8.5 | 6.7 | 12.9 | 12.4 | 8.7 | 6.7 | 11.8 | 11.5 |
36 | 11.3 | 8.2 | 6.5 | 11.8 | 11.7 | 8.5 | 6.5 | 10.7 | 11.3 | |
38 | 10.5 | 7.9 | 6.2 | 10.6 | 11.3 | 8.2 | 6.3 | 9.6 | 10.2 | |
40 | 10.4 | 7.5 | 6 | 9.6 | 10.3 | 8 | 6 | 8.6 | 9.3 | |
42 | 7.1 | 5.8 | 8.7 | 9.4 | 7.8 | 5.9 | 7.9 | 8.4 | ||
44 | 6.7 | 5.6 | 8 | 8.6 | 7.6 | 5.7 | 7.1 | 7.7 | ||
46 | 6.6 | 5.4 | 7.3 | 7.8 | 7.5 | 5.6 | 6.5 | 6.9 | ||
48 | 5.2 | 6.6 | 7.1 | 7.3 | 5.5 | 5.8 | 6.3 | |||
50 | 5 | 6.1 | 6.4 | 6.9 | 5.3 | 5.3 | 5.8 | |||
52 | 5 | 5.4 | 5.9 | 6.4 | 5.2 | 4.9 | 5.2 | |||
54 | 5.1 | 5.4 | 5.8 | 5.1 | 4.5 | 4.8 | ||||
56 | 4.7 | 5 | 5.4 | 5 | 4 | 4.4 | ||||
58 | 4.2 | 4.7 | 5 | 4.9 | 3.5 | 4 | ||||
60 | 3.9 | 4.2 | 4.5 | 4.8 | 3.2 | 3.7 | ||||
62 | 3.5 | 3.8 | 4.2 | 4.5 | 2.9 | 3.2 | ||||
64 | 3.5 | 3.8 | 4.1 | 2.6 | 2.9 | |||||
66 | 3.2 | 3.5 | 3.8 | 2.3 | 2.6 | |||||
68 | 2.9 | 3.2 | 3.5 | 2 | 2.3 | |||||
70 | 2.8 | 3.2 | ||||||||
72 | 2.5 | 2.8 | ||||||||
74 | 2.4 | 2.7 | ||||||||
76 | 2.3 | |||||||||
Weight | 65+21 | |||||||||
|
|
