Main technical parameters
XGC180 Main technical parameters of hydraulic crawler crane
Project | Unit | Value | ||
Import | Domestic | |||
Maximum rated lifting capacity | Main boom | t | 180 | |
Fixed jib | t | 33.5 | ||
Luffing jib | t | 50 | ||
Maximum lifting moment | t.m | 975.8 | ||
Main boom length | m | 19～82 | ||
Main boom luffing angle | Main boom working condition |
|
| |
Luffing jib working conditions |
| |||
Fixed jib condition | 30～ 85 | |||
Fixed jib length | m | 13～31 | ||
Luffing jib length | 20～59 | |||
Maximum single rope speed of hoisting mechanism (no load, fifth floor) | m/min | 138 | 120 | |
Maximum single rope speed of main boom luffing mechanism (first floor) | m/min | 2×35.9 | 2×28.4 | |
Max slewing speed | r/min | 2.0 | 1．5 | |
Max driving speed | km/h | 1.3 | 1.3 | |
Climbing grade | % | 30 | ||
Average ground pressure | MPa | 0.095 | ||
Engine power | kW | 242 | 250 | |
Machine weight (main hook, full counterweight, 19m boom) | t | 170 | ||
Maximum weight of a single piece in transport status | t | 37 | ||
Maximum dimensions of a single piece in transport state (length x width x height) | m | 11.5×3.0×3.3 | ||

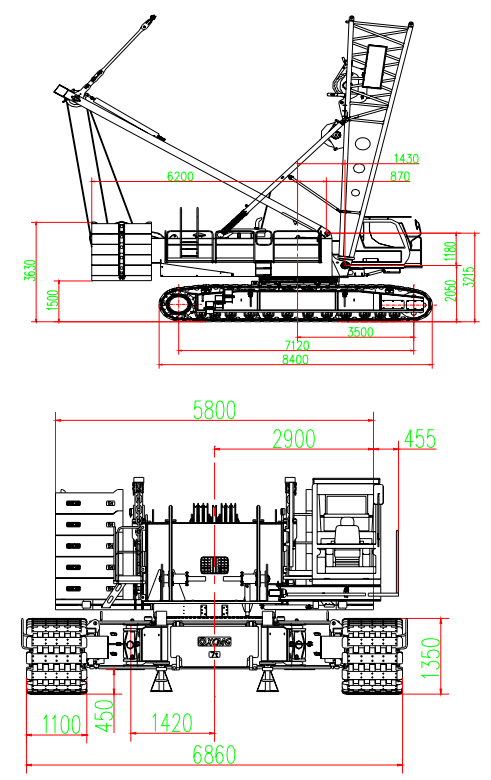

External dimensions
XGC180 Hydraulic crawler crane dimensions
|
|
