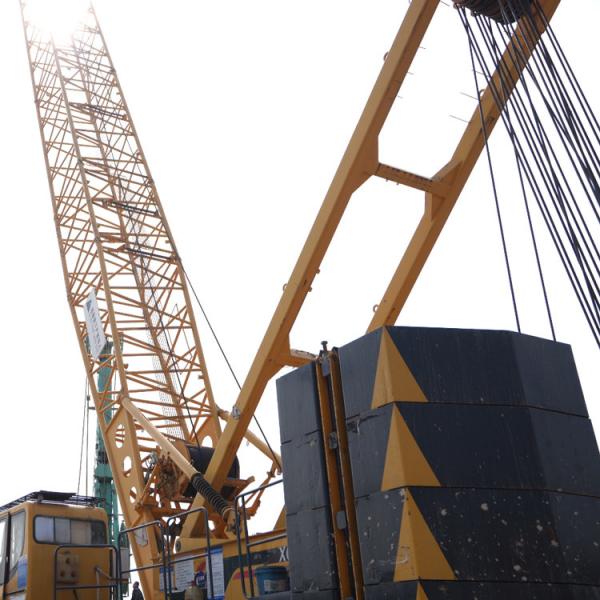

85T Crawler Crane Has Unique Advantages In Wind Power Equipment Installation

XGC85 Crawler Crane Technical Specifications

Crawler crane models: XGC85
Maximum rated lifting capacity: 85t/4.0m
Maximum rated lifting moment: 341t.m
The longest combination of main boom working conditions: 58 m
The longest combination of single pulley working condition at the main boom end: Boom 58m+Single pulley at arm end 1.1 m
The longest combination of fixed jib working conditions: Boom 49 m + fixed jib 19 m
Max transportation weight per piece: 41.2t
Max transport width per piece: 3.3m
Max transport height per piece: 3.4m

Typical working condition lifting performance table

Crane working range diagram

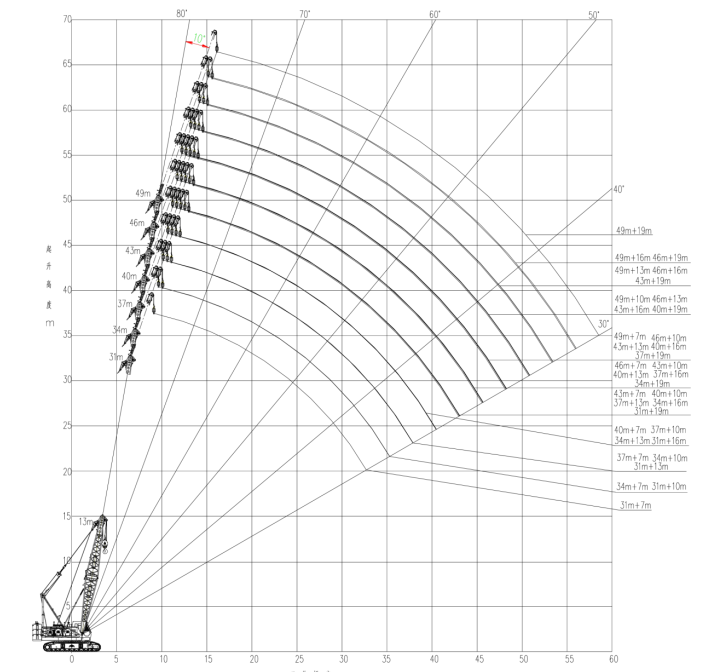

Main boom crane working range diagram

Working range of crane with fixed jib (10° installation angle)

Working range of crane with fixed jib (30° installation angle)

Shandong Tengfei Hoisting Engineering Co., Ltd. is a Chinese company that sells second-hand crane equipment for self-use, with more than ten years of sales experience. All our crane equipment is from our own projects, the equipment is in good condition, there are no middlemen, and the price is better. We have a full range of second-hand crane models, including brands such as XCMG,SANY, ZOOMLION,and any crane you need can be found here.

The specifications of our crawler cranes are: 55T, 85T, 130T, 150T, 180T, 220T, 260T, 300T, 320T, 350T, 400T, 500T, etc., with a wide range of lifting weights; due to the flexibility and maneuverability of crawler cranes, they can well complete various lifting projects such as construction, mining operations, port and terminal loading and unloading, railway construction, power construction, shipbuilding and marine engineering, heavy equipment handling, etc.
